Sale Price:
$3,200.00
Original Price:
$3,500.00
Used for about 2 weeks. Too powerful for the application bought for. Inspection date of 2022

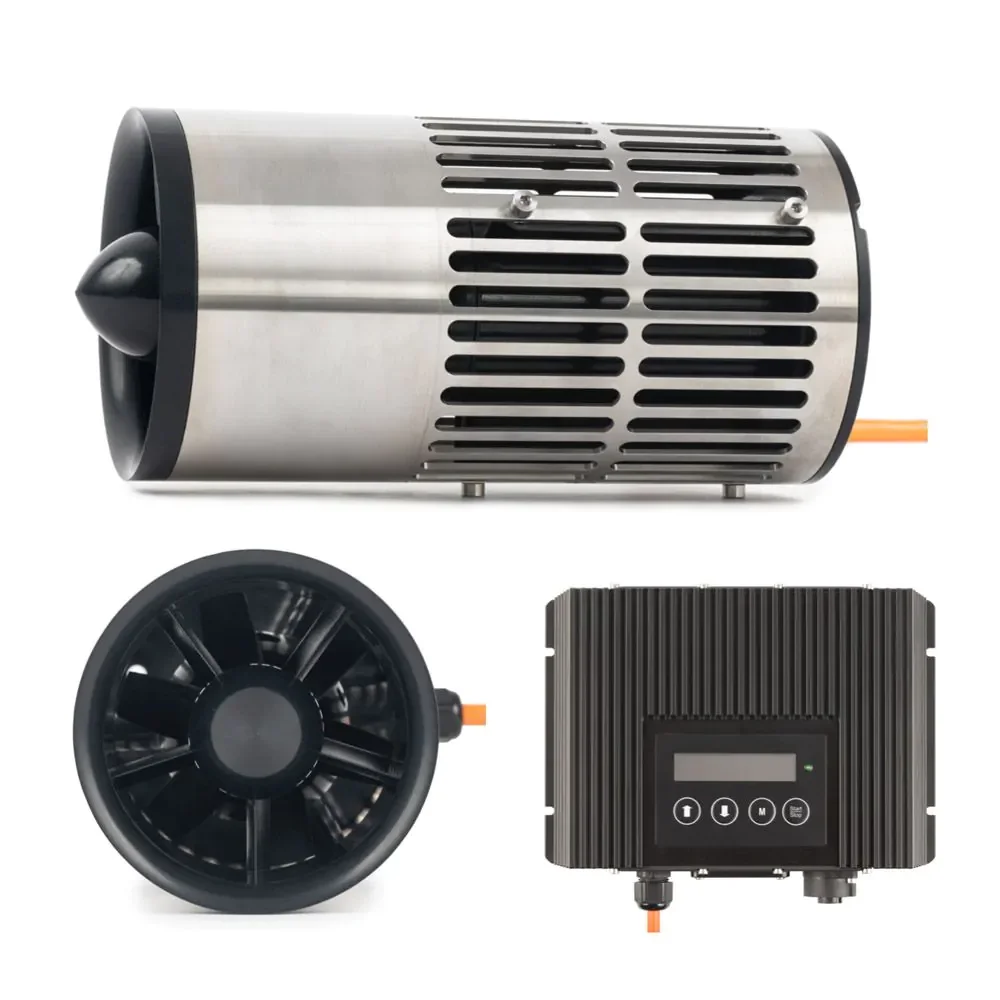

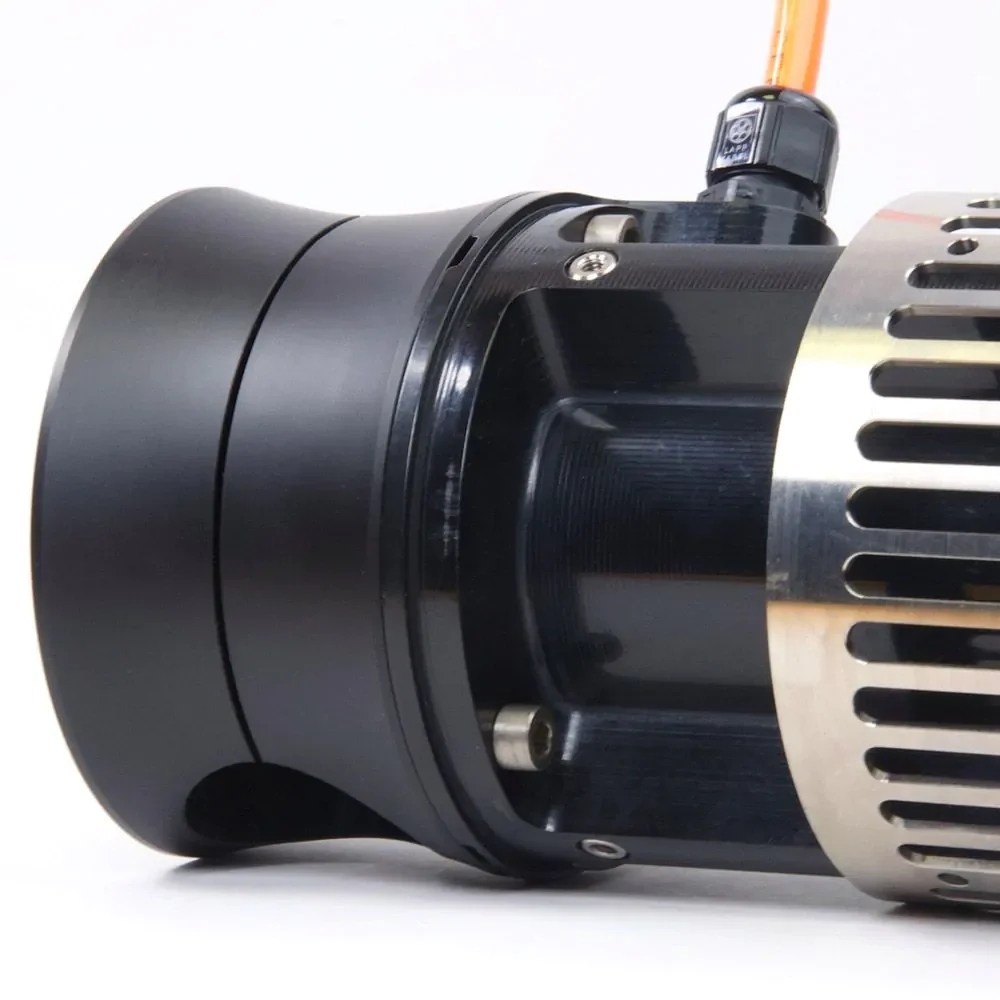

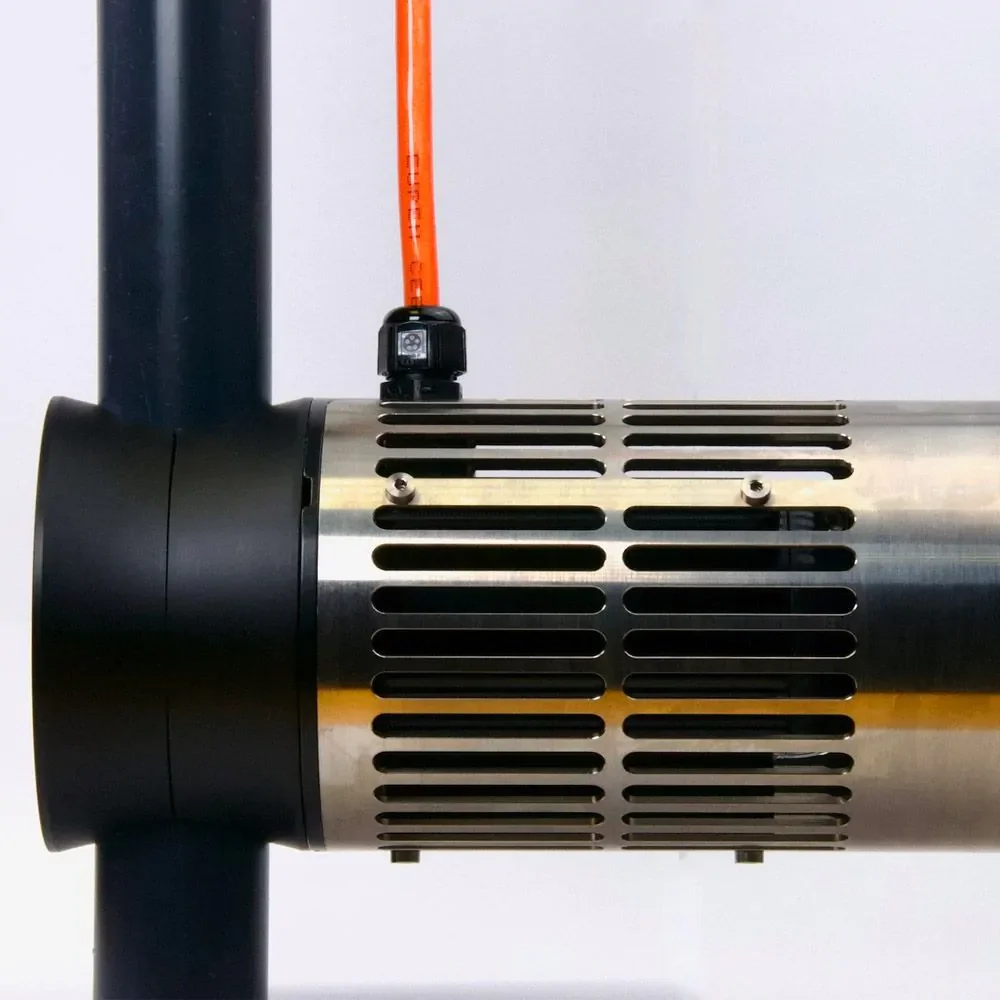

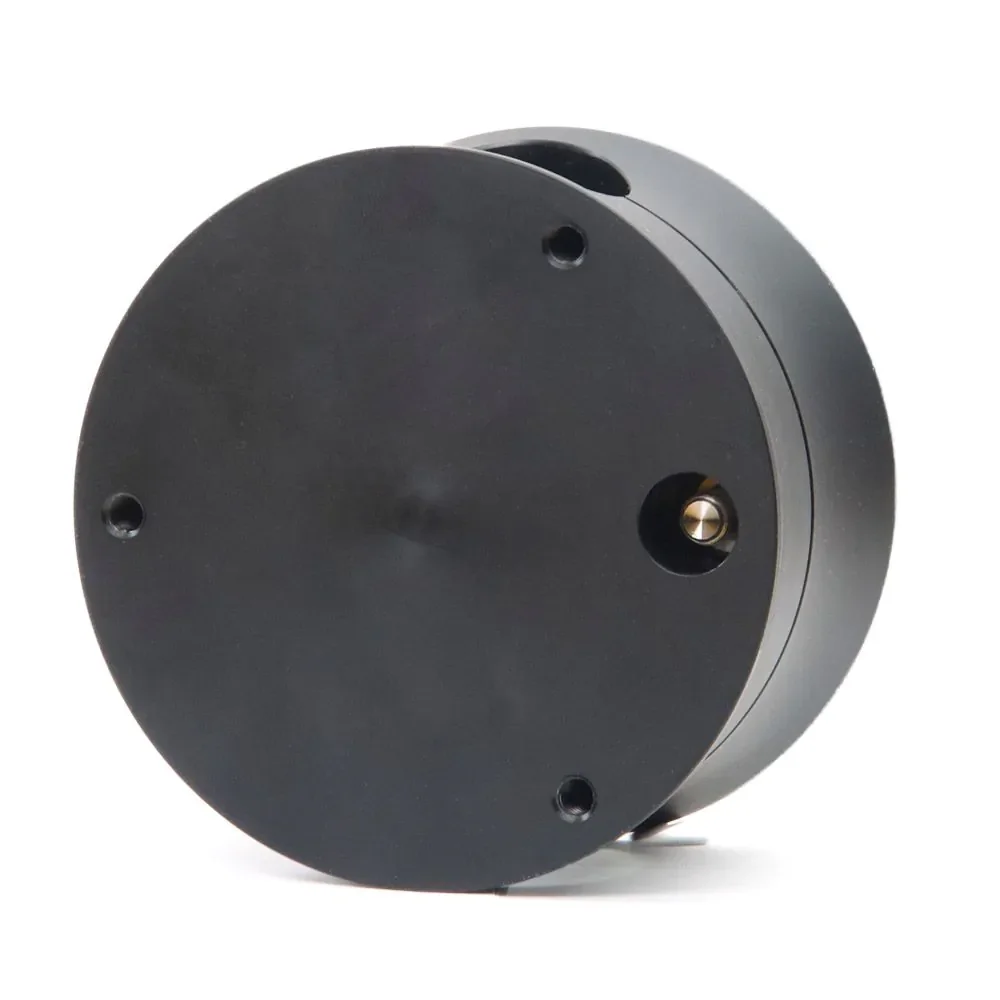

Abyzz Flow Cannon AFC150 Commercial Flow Pump
The innovative Abyzz Flow Cannon AFC150 with its high-end design, including a titanium rotor unit, titanium mounting frame, and carbon fiber parts, consists of the pump itself and a powerful and programmable driver. With an efficiency rating of more than 90% and precise adjustment for the application, it offers a highly energy-saving solution.
The integrated bearing flushing provides optimum protection against calcination and, in conjunction with the silicon carbide bearings and the special hard-metal shaft, ensures low-maintenance operations.
All metal parts are made out of titanium grade 2, and other parts are made out of nylon and carbon fiber. This composition ensures a long lifespan, thereby achieving the highest sustainability and the lowest carbon footprint. Several mounting options are offered to suit any needs, and due to the many mounting options, even a customer-specific mounting can be done very easily. The special 3-bladed prop and a well-designed hydraulic pump operate almost silently and with minimal vibration. An additional coat flow ring provides low output speed and long laminar flow. Easy programming (as in any Abyzz pump) and the possibility to link to external controllers offer a wide field of applications.
The materials used are designed to have a long lifespan and meet the highest quality standards. This product was developed and manufactured in Germany by Venotec.
*Mounting Hardware Sold Separately
Applications
Abyzz AFC-150 Pump Specifications
Flow (Nominal): 14,280 gph
Flow (Maximum): 15,840 gph
Discharge speed (max): 3,3m/s
Rated input: 4-150W
Operating Voltage: 100...240V~
Ambient temperature: +1…50°C (35…122°F)
Maximum immersion depth: 8 ft / 2.5 m
Pump cable length: 13ft/ 4m
Hardware Includes:
Specifications:

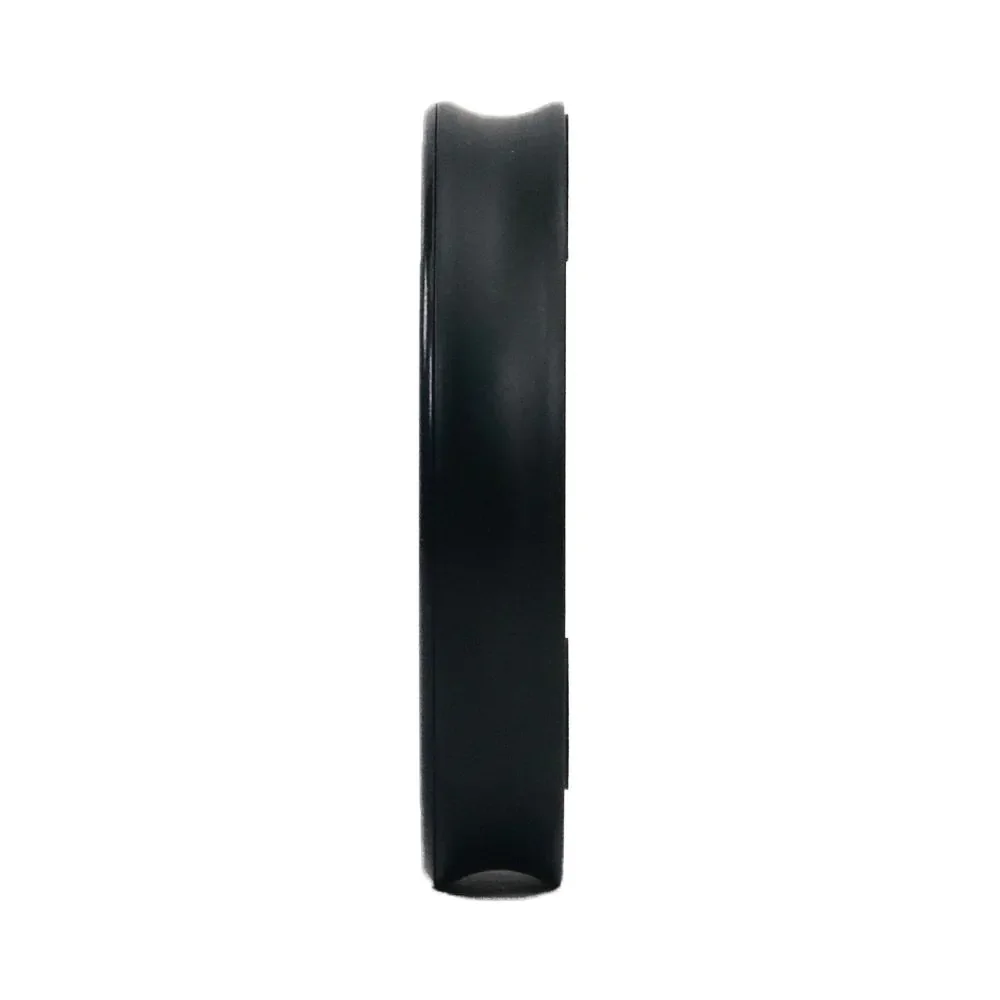

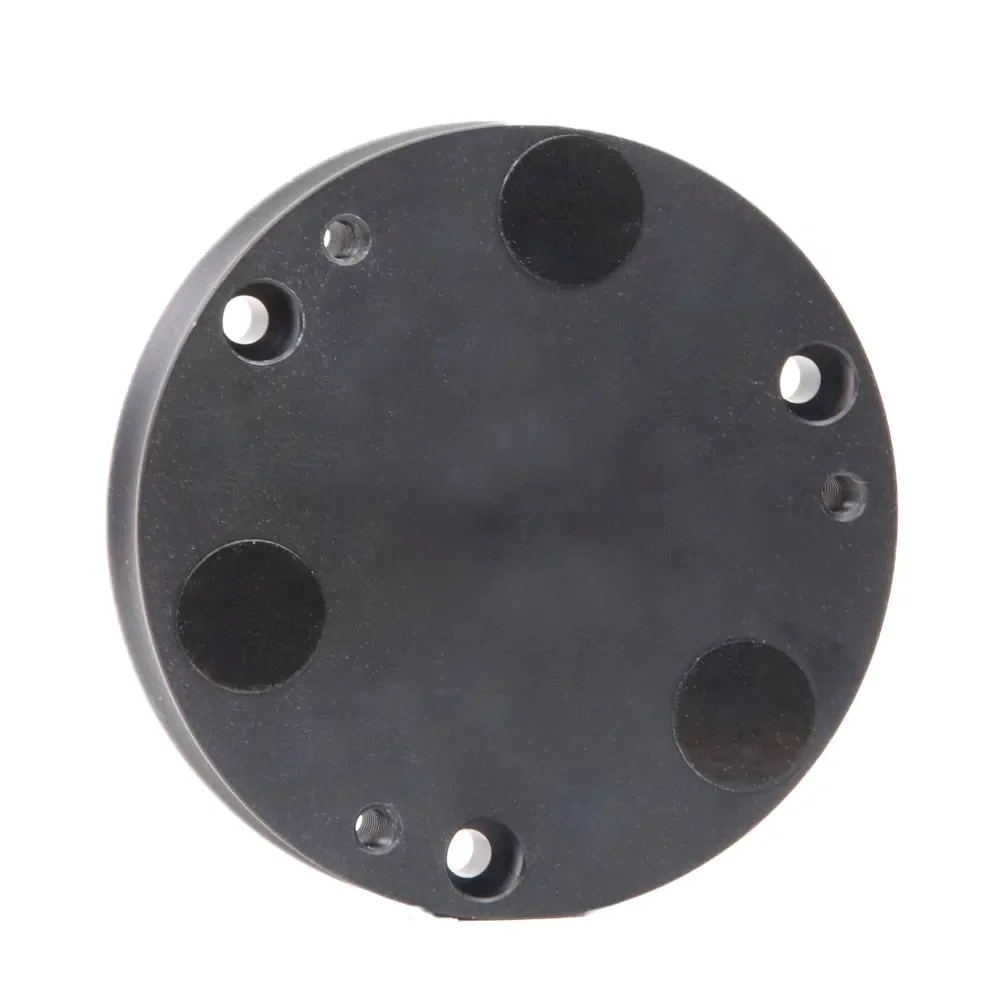

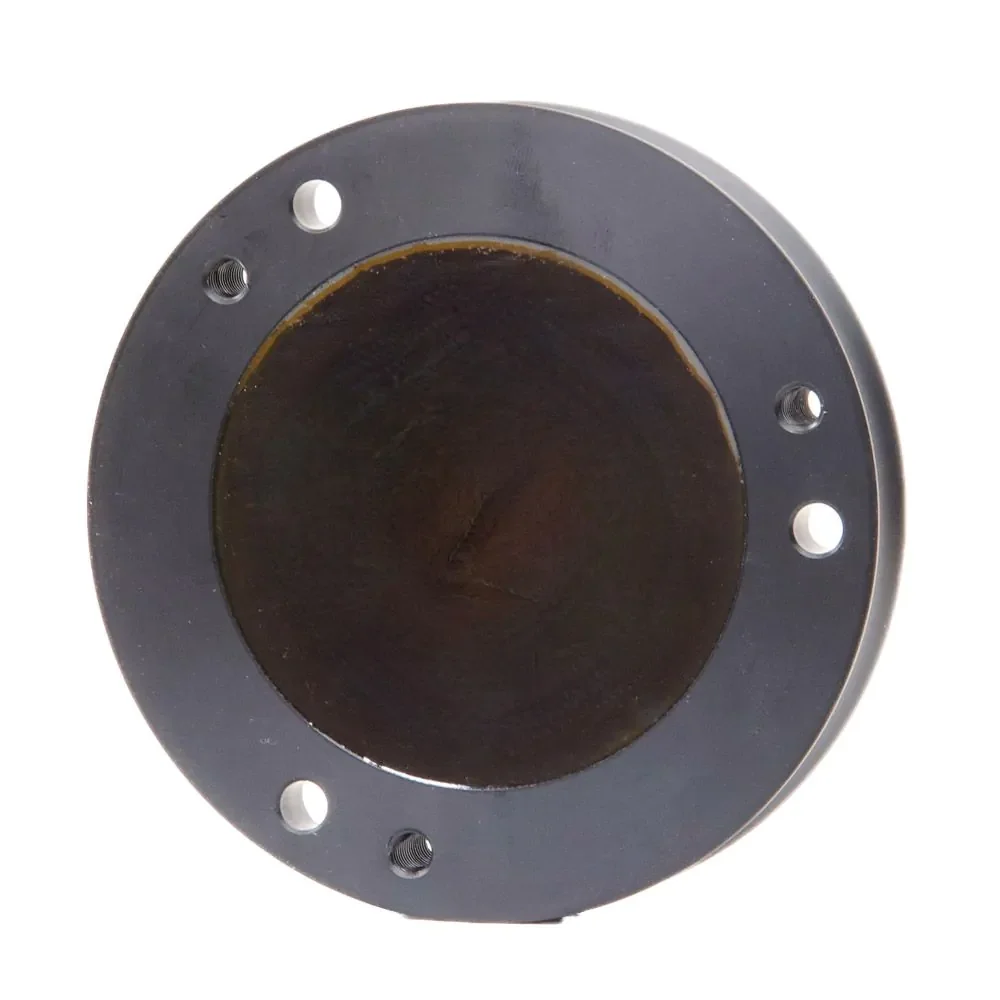

Magnetic Holder Includes:
Magnetic disk with rubber protectors for mounting on the back of the pump and for mounting the Abyzz AFC150 Mount Adjustable
Magnetic disk with rubber protectors for the outside of the aquarium glass
Three titanium screws 22mm, hexagon socket
Discs are approximately 4.5in (115mm) in diameter and have a thickness of about .67in (17mm)
